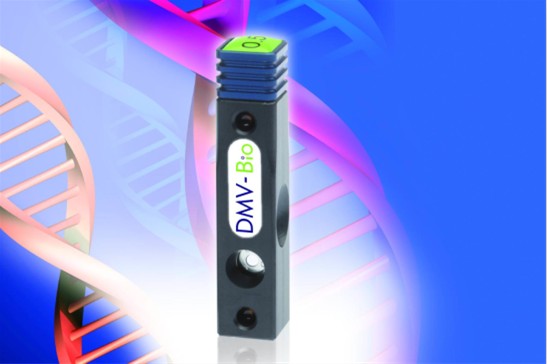

The unique Starna Demountable Micro Volume Bio Cell is designed for accurate micro-volume measurements with the majority of UV/Vis spectrophotometers. It provides the user with high quality, repeatable measurements based on innovative technological design and exceptional accuracy.
| Feature | Benefits |
|
Simple optical transmission path for high energy throughput |
*Minimal reduction in baseline energy
*Wide measurement range
*No integral reflective surfaces to consider or keep clean
*Uses conventional sample position of a spectrophotometer
*Useable in most simple Bio spectrophotometers |
|
Patented Hydro-danamic design with two window vertical geometry |
*Effective and automatic elimination of any excess sample from measurement area
*No additional optical components to consider
*Fits directly into a standard 10 mm path length cell holder |
|
Ergonomic Demountable Magnetic Assembly |
*No external mechanical,locking or retaining devices required
*Positive physical window positioning
*Accurate and reproducible path lengths
*Sample is located in a clearly defined physical area
*Easy filling and cleaning of sample area |
|
Available in 0.5,0.2 and 0.125 mm certifiable path lengths |
*Effective nominal volumes of 2.5,1.0 and 0.6 ul respectively
*Optical path can be validated to a high degree of accuracy with Starna certified references |
|
Available in 8.5 and 15 mm Z heights |
*Designed for use in a wide variety of spectrophotometers |
ORDERING INFORMATION
DMV-Bio/Q/0.5/Z15 DMV-Bio/Q/0.5/Z8.5
DMV-Bio/Q/0.2/Z15 DMV-Bio/Q/0.2/Z8.5
DMV-Bio/Q/0.125/Z15 DMV-Bio/Q/0.125/Z8.5
